Transformers
Project-specific power transformation
https://cdn.prod.website-files.com/6a838ff6d7b603ad9aeaed44/6aa2f5b6b319e9dc0ddb4863_wafr_transformer_composited_hero_v2.mp4
Wafr Equipment
Under Development
Pad-mounted, pole-mounted, dry-type, oil-immersed and 3D wound-core transformers for utility, industrial and data centre infrastructure.
Overview
Wafr supplies a broad range of distribution transformer solutions, including pad-mounted, pole-mounted, dry-type and oil-immersed transformers, with laminated, wound-core and amorphous-core configurations for commercial, industrial, utility and critical infrastructure applications. Transformer specifications can be configured to meet project-specific electrical, environmental, efficiency and installation requirements. Available configurations include copper or aluminum windings, radial or loop feed arrangements, live-front or dead-front connections, and a range of protection, monitoring and accessory options.
Where required, Wafr can supply transformer configurations designed to applicable project and market requirements, including IEEE, ANSI and IEC standards. Specific standards, testing and certification requirements are confirmed for each project.
RATINGS
5 kVA to 8,800 kVA
PRIMARY VOLTAGE
7.62 to 40.5 kV
FREQUENCY
50 / 60 Hz
Four distribution transformer platforms engineered for Wafr's project scope.
Five switchgear platforms engineered for Wafr's project scope.

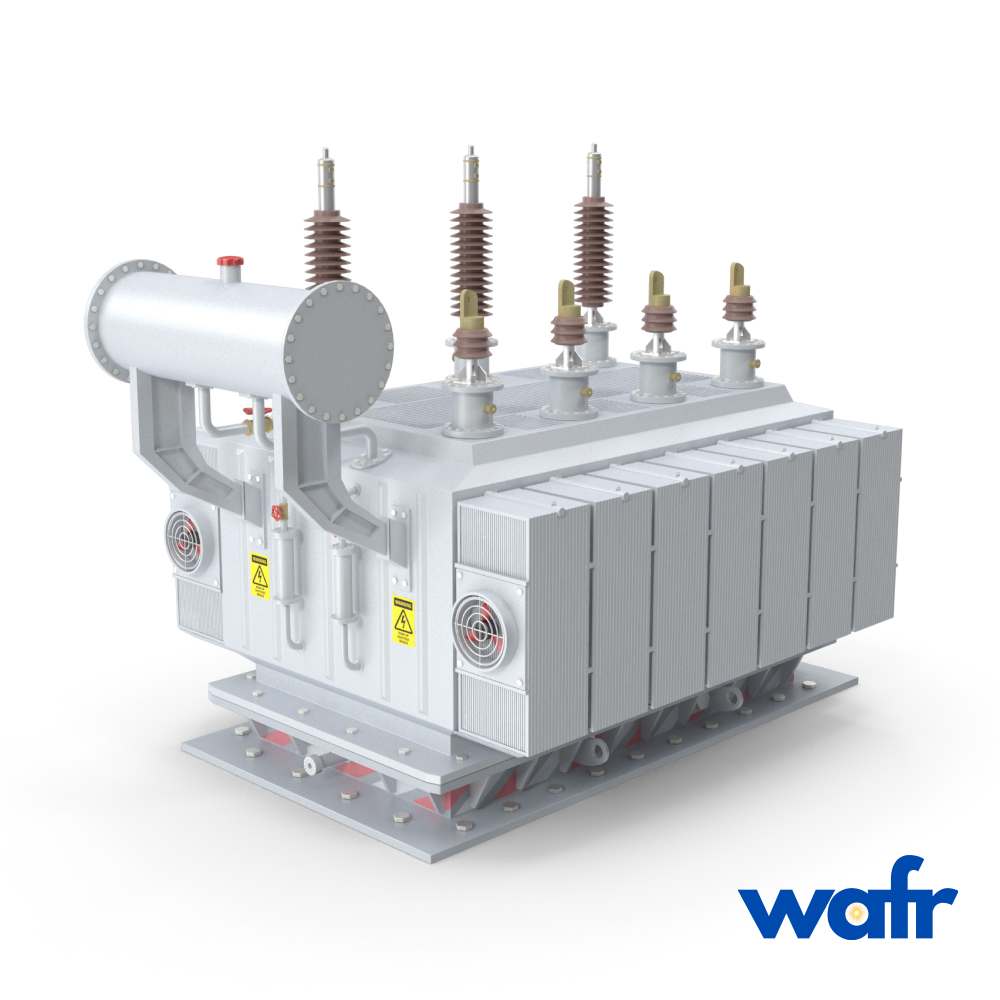

Engineering
Technical capabilities across Wafr’s distribution transformer offering. Equipment can be configured to meet project-specific voltage, capacity, installation, efficiency, and certification requirements.
Structured so engineering and procurement teams can review key ranges quickly.
ZGSL-H-4000
4,000 kVA · 26–36 kV · UL-US-2565205 / UL-CA-2548401
ZGSL-H-5000
5,000 kVA · 11–17 kV · UL-US-2569852 / UL-CA-2551394
XPLH-7250 (fan-cooled)
7,250 kVA · 11–17 kV · UL-US-2590099 / UL-CA-2565916
Pole-Mounted (TPA / TRD1)
15–150 kVA · 7.62/13.2/19.9 kV · 120/240 V secondary
Dry-Type (SCB13 / SCB18)
30–2,500 kVA · 10 kV · low noise, energy efficient
Oil-Immersed (S13-M / S20)
50–8,800 kVA · 10–35 kV · ONAN / ONAF
3D Wound-Core (S22-M-RL)
228,000 m² Ganzhou base · 3,300 units/month
Production Capacity
228,000 m² Ganzhou base · 3,300 units/month

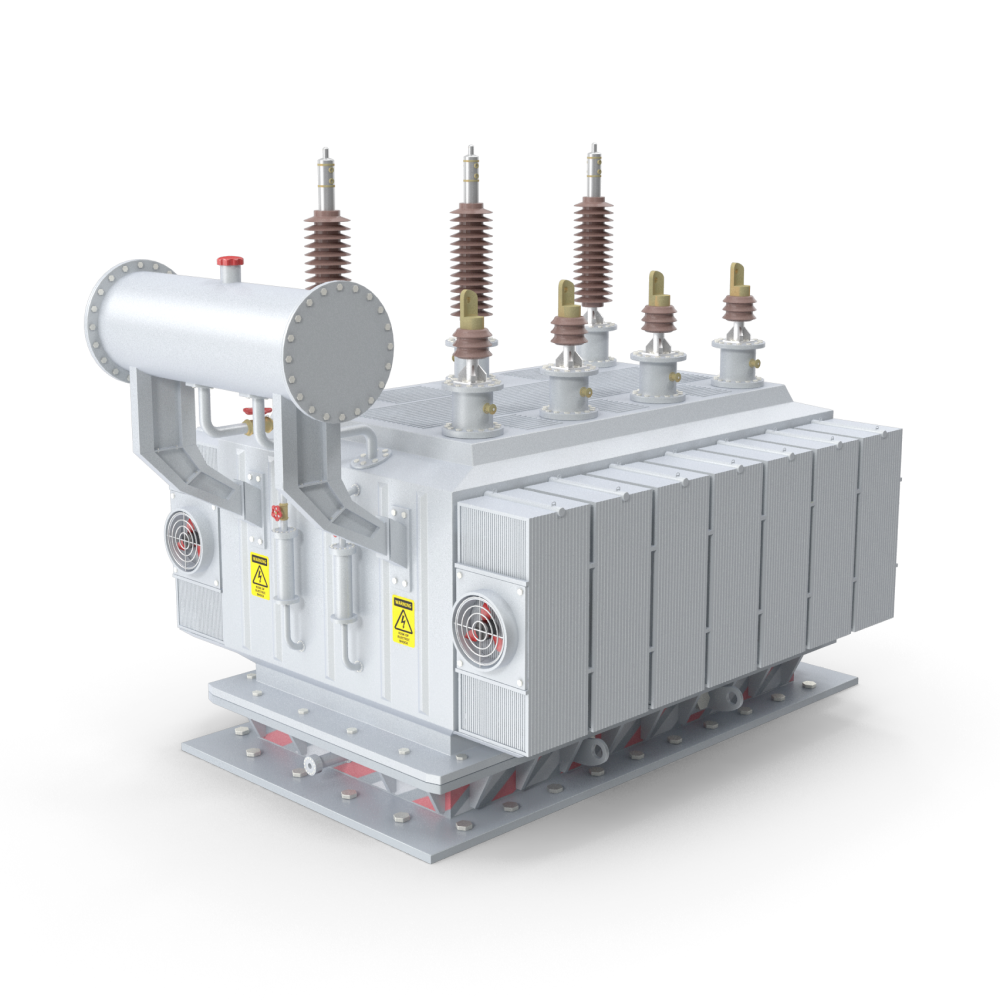

Three-Phase Oil-Immersed
oil-immersed
transformers
Fluid Coolers
fluid-coolers
dry-coolers
WTB Commercial
wtb-commercial
thermal-storage-battery

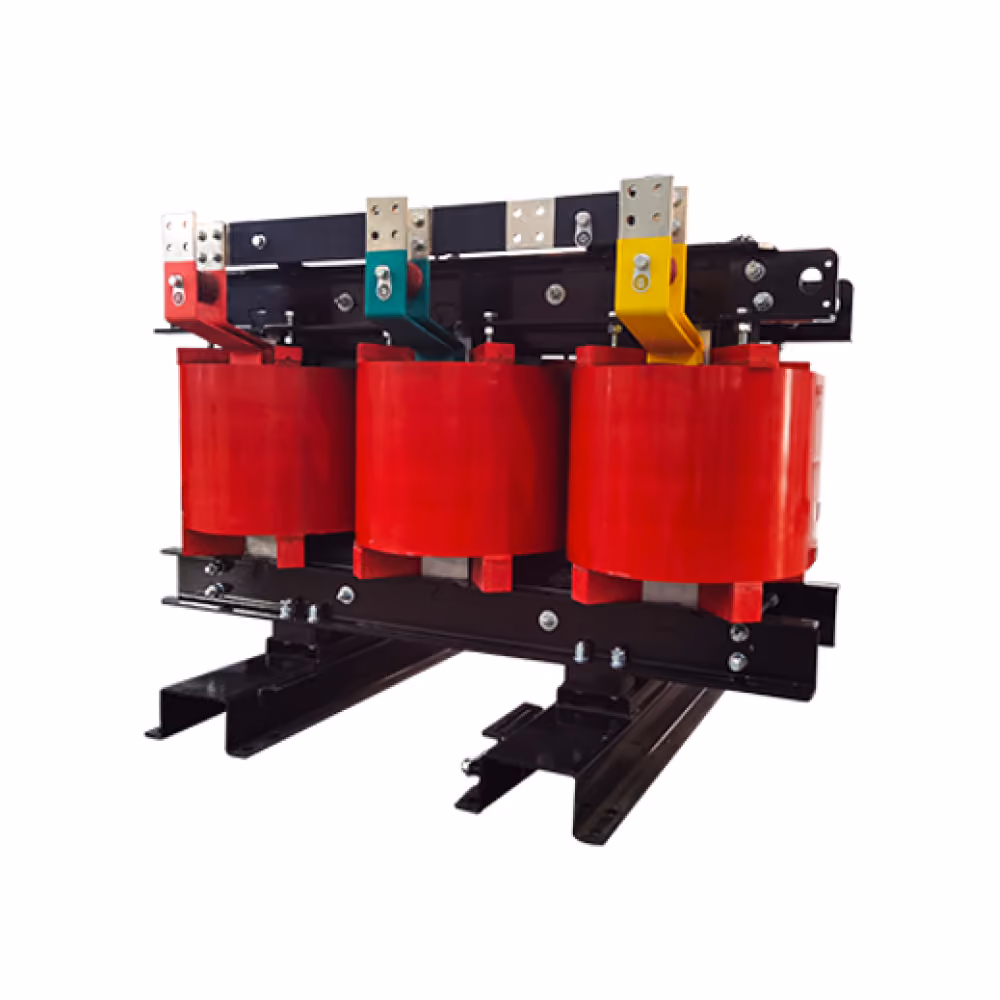

Three-Phase Dry-Type
dry-type
transformers
Freon Condensers
freon-condensers
dry-coolers
Single-Phase Pole-Mounted
pole-mounted
transformers
Ammonia Condensers
ammonia-condensers
dry-coolers

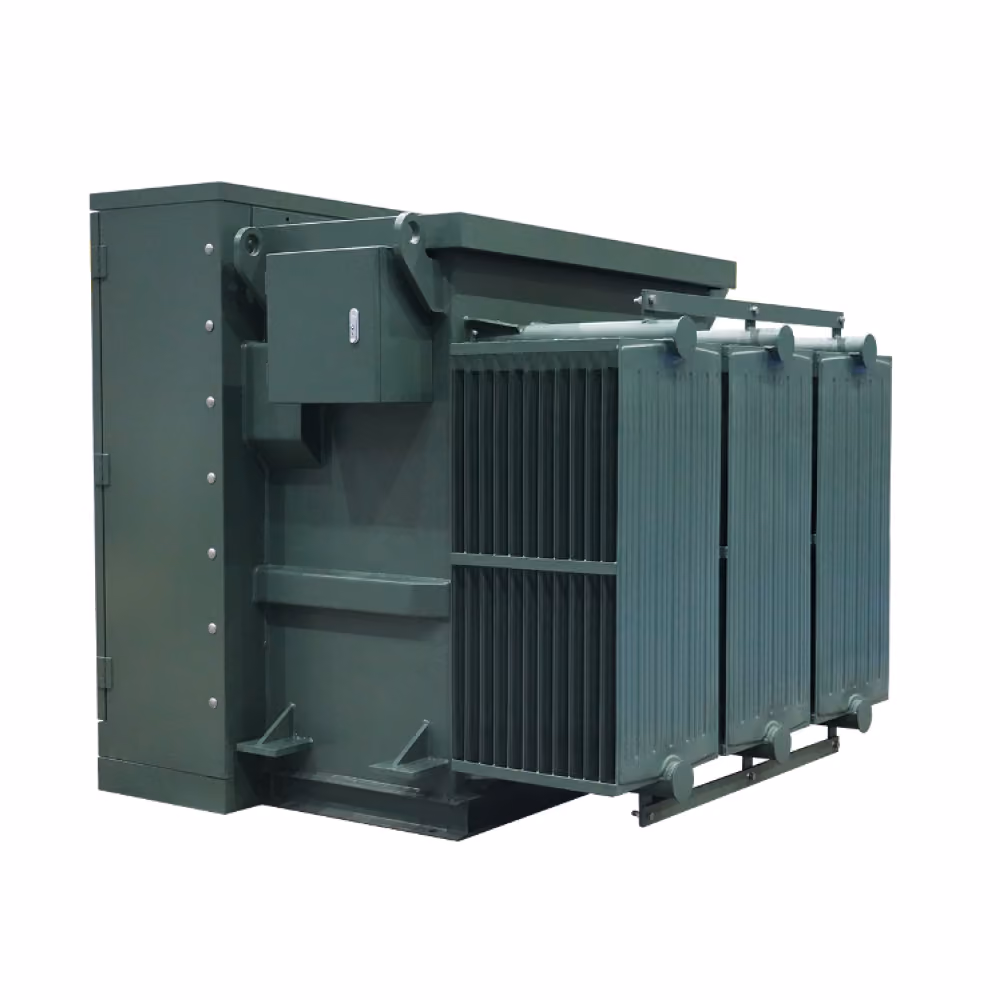

Pad-Mount
pad-mount
transformers
CO2 Gas Coolers
gas-coolers
dry-coolers
Oil Coolers
oil-coolers
dry-coolers
Rating Range
HV / LV Voltage
Vector Group
Cooling
Standard
50–500 kVA
11 / 0.433 kV
Dyn11
ONAN
IEC 60076
oil-immersed
30–800 kVA
10 / 0.4 kV
Dyn11
AN / AF
IEC 60076-11
dry-type
15–100 kVA
13.2 / 0.24 kV
—
ONAN
IEC 60076
pole-mounted
4,000 kVA
26–36 kV / 34.5 kV rated
Dyn11
ONAN
UL 1561 / IEEE C57.12
pad-mount
470–2,190 kW
Water / Glycol
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
fluid-coolers
343–2,005 kW
R404A
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
freon-condensers
420–2,237 kW
NH3
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
ammonia-condensers
407–1,267 kW
CO2 (94 Bar)
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
gas-coolers
240–1,309 kW
ISO VG 46 oil
1.8–3.2 mm
20 ft (6,058 mm) / 40 ft (12,192 mm)
AC / EC / marine / explosion-proof
oil-coolers
Maximum nominal cold storage capacity
kWh(th)
1,500
1,000
500
wtb-commercial
630–1,250 kVA
11 / 0.433 kV
Dyn11
ONAN
IEC 60076
oil-immersed
1,000–2,500 kVA
10 / 0.4 kV
Dyn11
AF
IEC 60076-11
dry-type
15–150 kVA
23/33 kV / 0.24 kV
—
ONAN
IEC 60076
pole-mounted
5,000–7,250 kVA
11–17 kV
Dyn11
ONAN / ONAF
UL 1561 / IEEE C57.12
pad-mount
1,600–4,000 kVA
33 / 0.69 kV
Dyn11
ONAN
IEC 60076
oil-immersed
Phase-change temperature
°C
Grade C7: 7.5 ± 1 · Grade C18: 18 ± 1
Grade C7: 7.5 ± 1 · Grade C18: 18 ± 1
Grade C7: 7.5 ± 1 · Grade C18: 18 ± 1
wtb-commercial
5,000–8,800 kVA
34.5 / 0.48 kV
Dyn11
ONAN / ONAF
IEC 60076
oil-immersed
Charging water inlet temperature
°C
C7: 5 · C18: 15
C7: 5 · C18: 15
C7: 5 · C18: 15
wtb-commercial
Discharge outlet temperature
°C
C7: 7–12 · C18: 18–23
C7: 7–12 · C18: 18–23
C7: 7–12 · C18: 18–23
wtb-commercial
Peak discharge temperature
°C
C7: 16.8 · C18: per test report
C7: 16.8 · C18: per test report
C7: 16.8 · C18: per test report
wtb-commercial
Storage method
—
Latent (phase change)
Latent (phase change)
Latent (phase change)
wtb-commercial
Rated flow rate
m³/h
58
40
20
wtb-commercial
Water supply pipe diameter
DN
150
150
100
wtb-commercial
Working pressure
MPa
0.8–1.0
0.8–1.0
0.8–1.0
wtb-commercial
Pressure drop
kPa
76.8
65.7
50.7
wtb-commercial
Recommended pipe velocity
m/s
0.8
0.8
0.8
wtb-commercial
Recommended chiller capacity
kW
Per configuration
142–165
70–80
wtb-commercial
Recommended charging window
h
≈ 8 (off-peak / valley tariff)
≈ 8 (off-peak / valley tariff)
≈ 8 (off-peak / valley tariff)
wtb-commercial
Recommended discharge window
—
Local peak tariff hours
Local peak tariff hours
Local peak tariff hours
wtb-commercial
Control
—
Networked automatic program control
Networked automatic program control
Networked automatic program control
wtb-commercial
Unit size (L × W × H)
mm
9,300 × 2,896 × 3,170
6,800 × 2,896 × 3,170
3,808 × 2,896 × 3,170
wtb-commercial
Operating weight
kg
≥ 36,000
≥ 26,500
≥ 14,300
wtb-commercial
Wafr works with manufacturing partners capable of supporting both standard and project-specific distribution transformer requirements across a range of capacities, voltages, and configurations.
Equipment can be specified to meet applicable ANSI/IEEE, UL/cUL, efficiency, and other project-specific requirements for U.S. and Canadian installations. Applicable standards and certifications are confirmed for each product and project prior to supply.
Lead times vary by transformer type, specification, certification requirements, production capacity, and order volume. Wafr works with its supplier network to identify configurations that can meet project delivery requirements.
Warranty terms are provided with each quotation and vary by manufacturer, transformer type, and project requirements.
Compliance
CSA
Applicable by configuration
UL / cUL
Applicable by configuration
IEEE
Applicable by configuration
ANSI
Applicable by configuration
NEMA
Applicable by configuration
QA Docs
Applicable by configuration
Quality Commitment
24 months warranty against manufacturing defects, counted from commissioning (or 30 months from shipment, whichever ends first)
Covers transformer core, windings, tank and factory-installed components
Defective units repaired or replaced at Wafr's cost, including freight
Technical support: remote diagnosis within 48 hours, on-site service available for major claims
Spare parts shipped within 30 days for standard models
Extended warranty and preventive-maintenance packages available on request
Final warranty terms per purchase contract.
Resources
Everything an engineer or procurement team needs to move from evaluation to specification.
Specify
Transformers
for your project
Send Wafr your project requirements and the team can confirm fit, configuration and documentation.
